psi pressure gauge 100mm RS485 pressure gauge

Description of psi pressure gauge 100mm RS485 pressure gauge
YK-100B digital pressure gauge with high precision low-power LSI as the core component, mainly composed of high-precision measurement chip, battery charge protection circuits, sensors and signal processing circuit.
The product uses a microprocessor deal with zero drift and nonlinearity automatic compensation, correction. Using high stability pressure sensors and other high-performance devices to ensure the accuracy and reliability of the instrument. Can be used as a high accuracy pressure calibration standard device (meter), also be used as working instrument, electric power, metallurgy, petroleum , chemical industry and in the field of measurement and laboratory research.

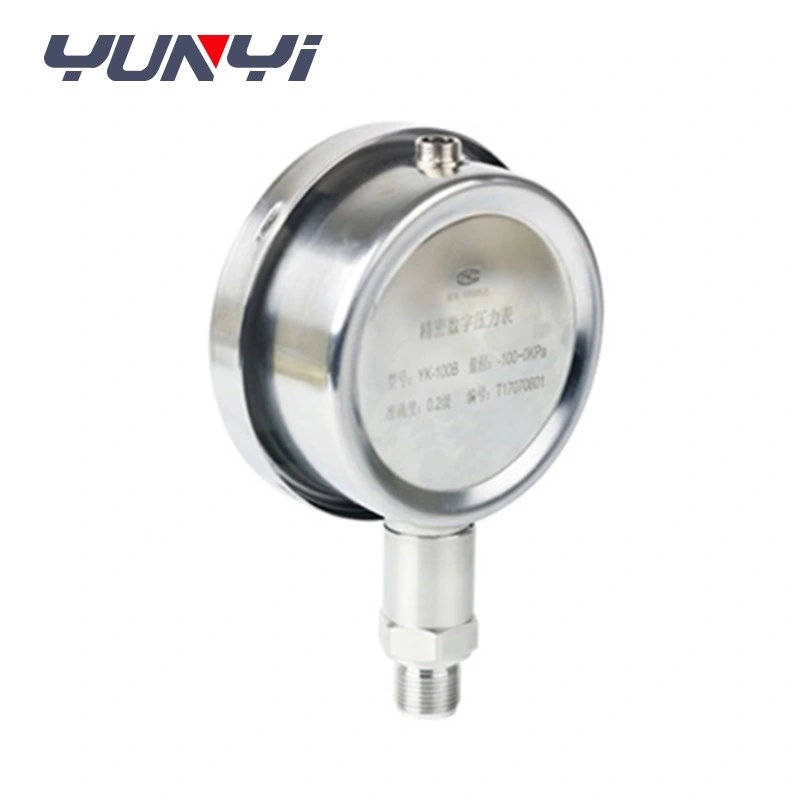

Picture of psi pressure gauge 100mm RS485 pressure gauge



Feature of psi pressure gauge 100mm RS485 pressure gauge
1) Can set various parameters according to user needs, flexible and convenient.
2) Can custom according to user requirements
3) Software temperature compensation, high accuracy, wide temperature.
Specification of psi pressure gauge 100mm RS485 pressure gauge
1. Environment:
Ambient temperature: (- 10 ~ 50) ºC
Relative Humidity: <95%;
Atmospheric pressure: (86 ~ 106) kPa;
Storage temperature: (- 20 ~ 70) ºC.
2. Specification:
Pressure: 0-2500bar
Accuracy: 0.4%FS, 0.25%FS, 0.1%FS, 0.05%FS,
Power supply: 7.2 battery power supply
3.Display:white backlight, five digital display.
4.Power supply: Internal battery / external DC 9V voltage supply / external power supply voltage AC220V
5. Dimensions: Φ100mm × 34mm;
6.Weight: about 0.5kg;
7.Pressure connection: M20 × 1.5mm;
8.Overload voltage: 1.2 times overload
