| Model | GLS-120 | |
| Output | DC output voltage | 12 |
| Output voltage tolerance | ±5% | |
| Rated output current | 10A | |
| Output current | 0~10A | |
| Output power | 120W | |
| Ripple and noise | 50mVp-p | |
| Line regulation | ±1% | |
| Load regulation | ±2% | |
| Voltage adj . range | Fixed | |
| Setup rise hold up time | 500ms/20ms/30ms,230VAC;500ms/30ms/20ms,115VAC | |
| Input | Input voltage range | 90~264VAC 47-63Hz,135-370VDC |
| AC input current | 0.35A/115V 0.2A/230V | |
| Efficiency | 89% | |
| AC inrush current | 25A/115V 50A/230V | |
| Leakage current | <1mA/240VAC | |
| Frequency range | 47~63Hz | |
| Protection characteristic | Over load protectio | 110%~135% rated output power |
| Protection mode : Hiccup mode ,auto-recovery after fault condition is removed. | ||
| Over-voltage protection | 130%~150% rated output power | |
| Protection mode : Hiccup mode ,auto-recovery after fault condition is removed. | ||
| High temperature protection | RTH3≥65ºC~70ºC cut off output | |
| Protection mode : Hiccup mode ,auto-recovery after fault condition is removed. | ||
| Environment | Working temperature | 10ºC~ 60ºC,20%~90%RH |
| Working humidity | 20%~90% RH non-considering | |
| Storage Temp,humidity | -20ºC~ 85ºC,10%~95%RH | |
| Temp.coefficient | ±0.03% /ºC(0~50ºC) | |
| Vibration | 10~500Hz, 2G 10min./1 cycle ,period for 60 min. each along X Y Z axes | |
| Safety | Withstand voltage | I/P-O/P:3000 VDC |
| Safety standards | EN60950 | |
| Insulation resistance | I/P-O/P:100M Ohms/500VDC/25ºC/70%RH | |
| EMI conduction&radiation | Compliance to EN55024, EN61000-3-3 | |
| EMS immunity | Compliance to EN61000-3-3 | |
| Harmonic current | Compliance to | |
| Others | Weight/Packing | 0.6KG |
| Dimension | 170*65*40MM | |
| Connector | Plug | AU EU US UK plug |
| Cable | 1.2M | |
- Remark:1. All parameters are specified at 230VAC input, rated load, 27ºC 70%RH ambient.
2. Ripple and noise are measured at 20MHz by using a 12 inch Twisted pair terminated with 0.1u and 47u capacitor.
3. Tolerance: includes set up tolerance, line regulation, load regulation.
4. DC voltage : the output voltage set at point measure by plug terminal &50% load.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 20% to 100% rated load.
7.The power supply is considered a component which will be installed into a final equipment .The final equipment must be re-confirmed that it stills meets EMC directives.

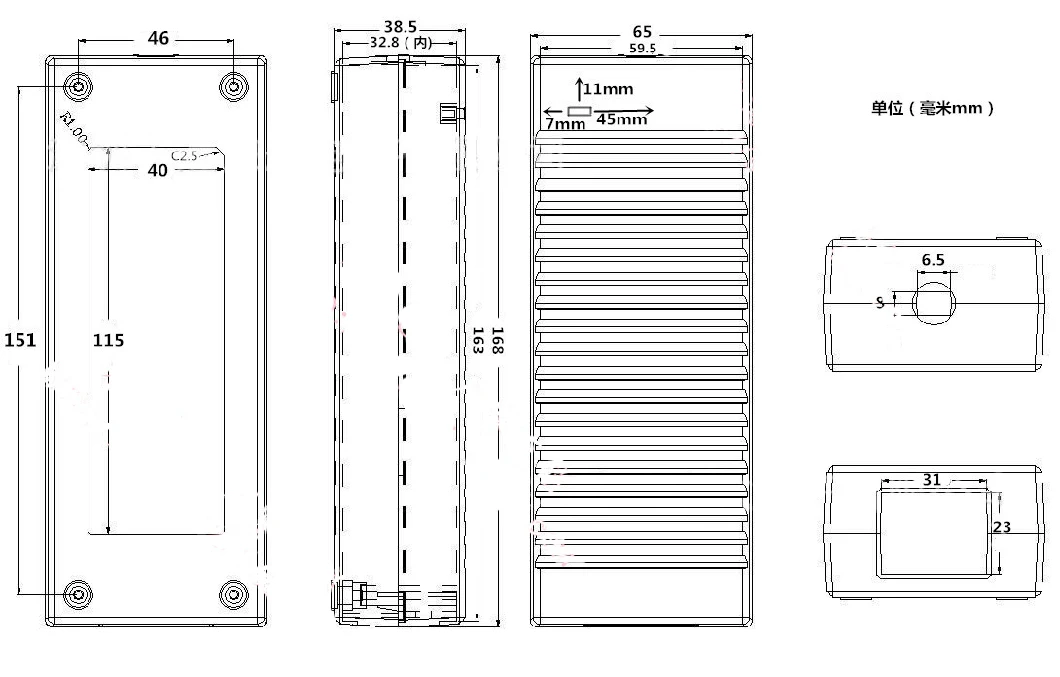

Product Dimension
